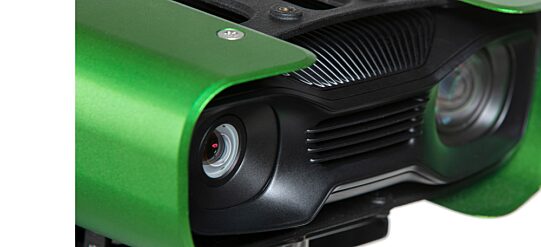

Pickit M-HD2

Get an estimate

Compact and highly accurate 3D vision solution

What's new

  • Ideal for robot mount

    Lightweight and compact form that works with any robot brand!

  • Highly accurate

    Two times better camera accuracy than the M-HD model!

  • Ethernet connection

    Benefit from a robust Ethernet connection with the Pickit processor.

Facts

Camera technical specifications

  • 3D measurement method

    Structured light

  • 3D image capturing time

    From 200 ms

  • 3D camera resolution (pixels)

    1944 x 1200 (2.3 MP)

  • 3D camera accuracy (%)

    < 0.4 %

  • 3D camera accuracy (mm)*

    1 - 2 mm

  • Estimated picking accuracy**

    1.5 x 3D camera accuracy

  • 3D camera weight

    880 g

  • 3D camera connection to PC

    M12-8 (Ethernet)

  • PC connection to robot

    TCP/IP over Ethernet

* A larger FOV has lower 3D camera accuracy

** Average accuracy from the real production environment

Camera field of view

Camera field of view diagram
Download data sheet

What's in the box

Hardware

Software

Our products come with the latest Pickit 3D vision software, all setup and ready to go. Want to learn what else Pickit can pick? Discover all features of the latest software update on our Knowledge Base.

Read more

Get an estimate

Automation projects with Pickit HD

See how others solve picking tasks with the Pickit 3D vision system:

Get an estimate and info

Looking for a price, production references, or have questions? Please contact us for more information on our vision systems.
